external protection of combustible pipes.

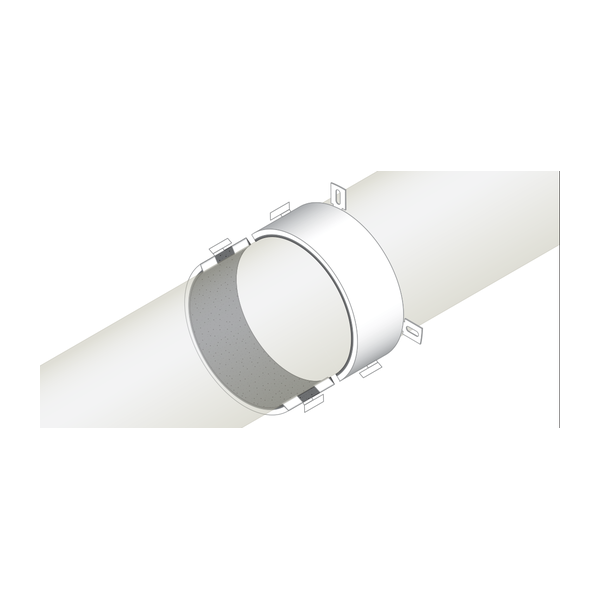

the FIRE COLLARS “GB-C EXTRA PLUS” are collars for the external sealing of penetrations of pipes in PVC, PE, PP, ABS, SAN+PVC and multilayer composite; they consist of a metal shell made up of two half-rings, so that they can be easily positioned around the pipe to be protected Inside there is a graphite-based intumescent material which ensures, during the fire and before the pipe melts completely, complete closure of the penetration opening; in addition, the metal structure ensures a perfect seal of the intumescent material inside the structure itself. In the event of fire, combustible pipes burn and melt in a few minutes, leaving a free gap which represents a critical area capable of compromising the fire resistance of a compartment element. The FIRE COLLARS “GB-C EXTRA PLUS” overcome this problem thanks to their particular structure and their functional characteristics, forming, from the very first minutes of the fire, an insulating foam that closes the passage.
| HEIGHT | Ø FIRE COLLAR | HEIGHT | |
|---|---|---|---|
| Ø 32 mm | 31 mm | Ø 110 mm | 31 mm |
| Ø 40 mm | 31 mm | Ø 125 mm | 41 mm |
| Ø 55 mm | 31 mm | Ø 160 mm | 41 mm |
| Ø 63 mm | 31 mm |
COMBUSTIBLE PIPES
The contents of this page are summarised from the official technical data sheet PDF, which remains the reference document.
| Ø 200 mm |
| 61 mm |
| Ø 75 mm | 31 mm | Ø 250 mm | 220 mm |
|---|
| Ø 82 mm | 31 mm | Ø 315 mm | 220 mm |
|---|
| Ø 90 mm | 31 mm |
|---|
