Application

Product: F62 Paint And Super Paint · Protection Of Lightweight Concrete Block Walls

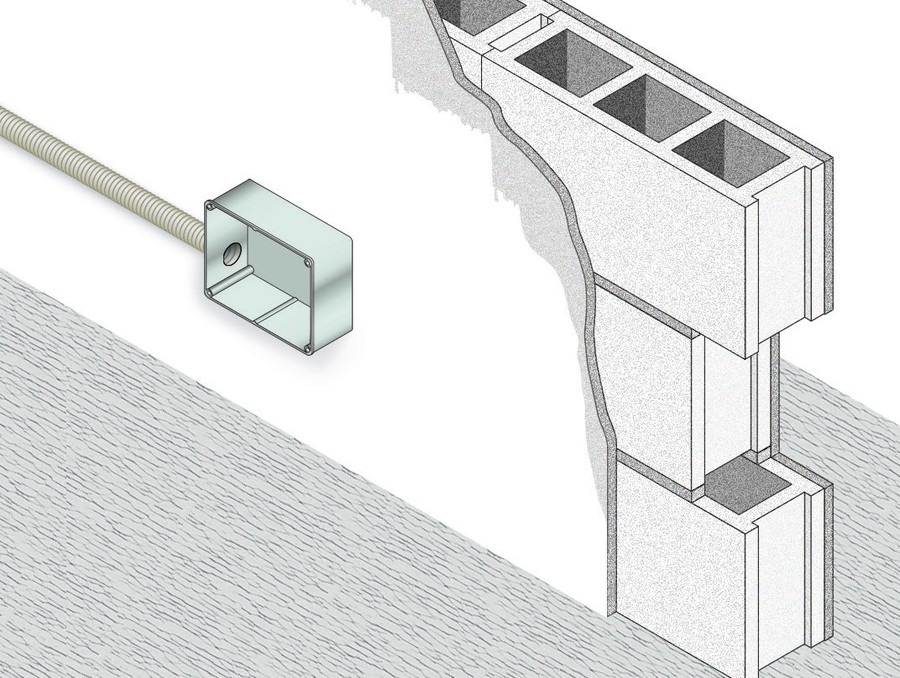

Technical drawing

Protection Of Lightweight Concrete Block Walls · EI 120

Technical specifications

Supporting construction: concrete block wall thickness 80 mm for multi-cavity or solid blocks, and thickness 100 mm for single-cavity blocks. Complete with cement plaster on both sides thickness 10 mm
Protective coating: F62 PAINT intumescent paint
Consumption: 1,4 kg/m²
Substrate preparation: not required. If necessary use F62 PRIMER
Direct field of application: height up to 4,2 metres
Special conditions: use of electrical boxes and corrugated conduits for electrical systems fixed to the wall.
Extended field of application

Specification clause

Supply and installation of F62 PAINT water-based intumescent paint on a concrete wall, thickness 80 mm (multi-cavity or solid blocks) or thickness 100 mm (single-cavity blocks), with cement-based plaster, thickness 10 mm, on both sides, with fire resistance EI 120 in accordance with classification report I.G. 347079/3882FR.

The paint will be applied by brush, roller or spray at a rate of 1,4 kg/m². The certification covers the presence of electrical boxes and corrugated conduits fitted to the wall. For the installation procedure, refer to the specific technical data sheet.

Regulatory compliance

Classification report: I.G. 347079/3882FR
Technical file: 347957
Test standard: EN 1364-1

PROTECTION OF LIGHTWEIGHT CONCRETE BLOCK WALLS

Technical drawing

Technical specifications

Specification clause

Regulatory compliance
