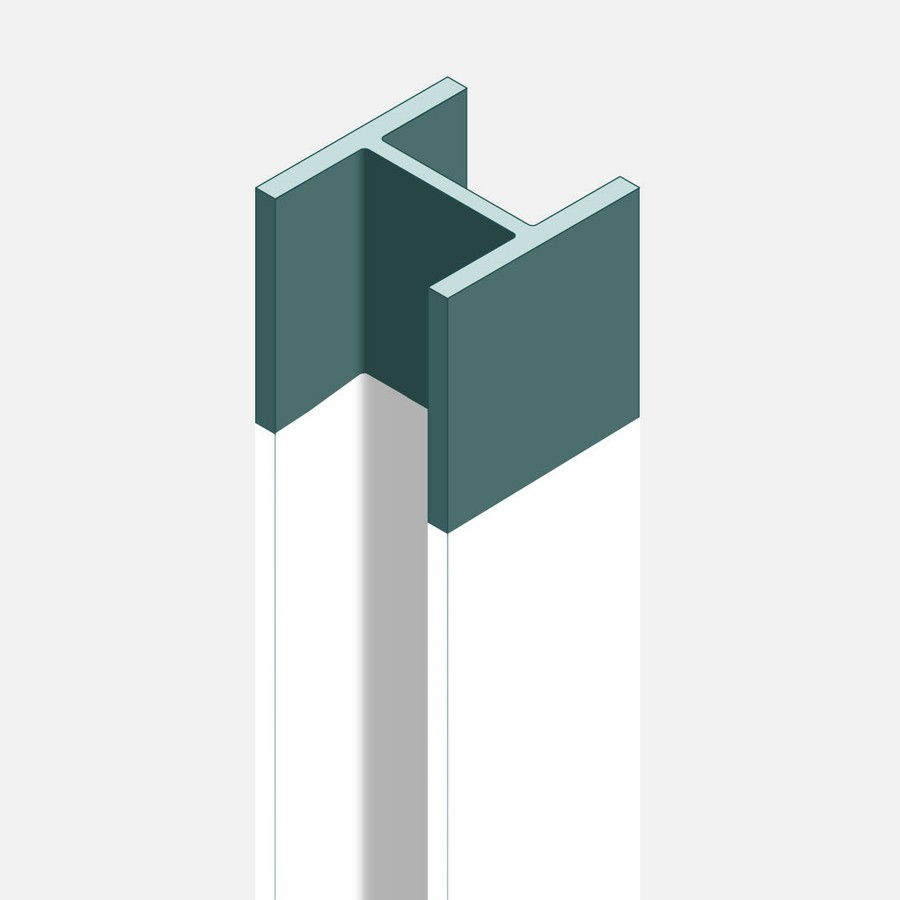

Technical drawing

Technical specifications

Supporting construction: steel columns or beams
Protective coating: F62 PAINT S intumescent paint (see ETA 21/0474 tables according to the section factor)
Application: by brush, roller or spray
Coverage: 1 kg/m² equal to 497 µ
Substrate preparation: where not present, use F62 PRIMER S anti-corrosion primer. For galvanised structures use F62 PRIMER Z thickness 45-60 µ
Finish: use F62 FINISH S enamel, not required for fire protection purposes, for protection against weathering with a thickness of 60-95 µ

Notes and additional data

FOR SECTION FACTORS UP TO 320 (m⁻¹)

Specification clause

Supply and installation of protection for steel beams or columns with fire resistance R15/30/60/90, made with water-based intumescent fire-protection paint F62 PAINT S, in accordance with

classification report ETA 21/0474 and according to standard EN 13381-8. The paint will be applied by roller, brush or spray. For application procedures, see the specific technical data sheet.

Regulatory compliance

Classification report: ETA 21/0474
Test standard: EN 13381-8
