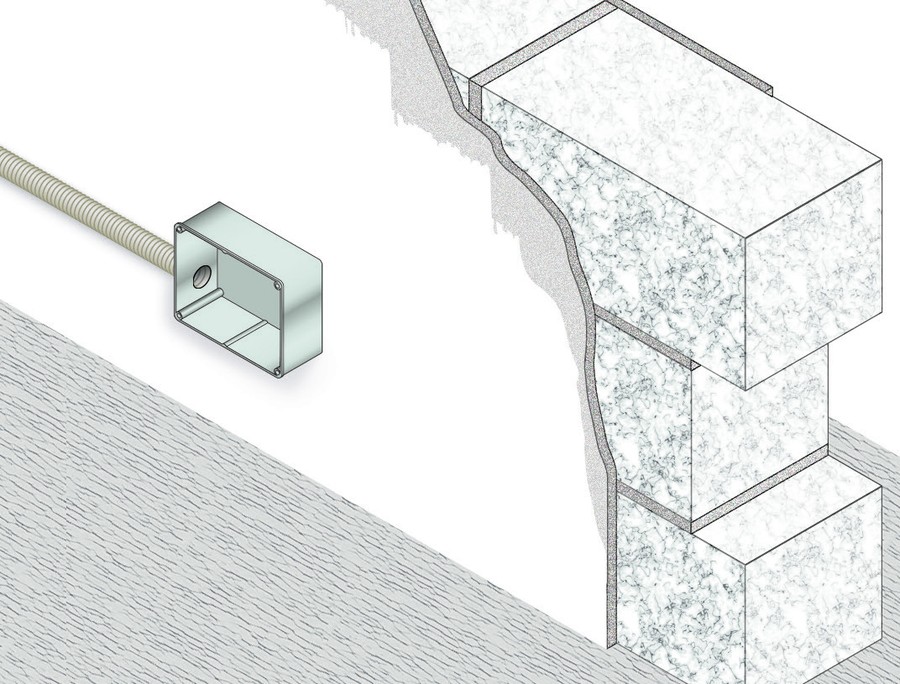

Technical drawing

Protection Of Stone Block Walls Th. 150 · EI 120

Technical specifications

Supporting construction: stone block wall thickness 150 mm and cement plaster on both sides thickness 10 mm • Protective coating: F62 PAINT intumescent paint
Consumption: 1,4 kg/m²
Substrate preparation: not required. If necessary use F62 PRIMER
Direct field of application: height extension up to 4,2 m
Extended field of application: Technical file approv. by Istituto Giordano No. 347957 - Height up to 8 metres (note: check wall thickness increase)

Notes and additional data

WITH PLASTER ON BOTH SIDES

Specification clause

Supply and installation of F62 PAINT water-based intumescent paint on a stone block wall, thickness 150 mm, with cement-based plaster, thickness 10 mm, on both sides, with fire resistance EI 120 in accordance with classification report I.G. 347079/3882FR.

The paint will be applied by brush, roller or spray at a rate of 1,4 kg/m². The certification covers the presence of electrical boxes and corrugated conduits fitted to the wall. For the application procedure, refer to the specific technical data sheet.

Regulatory compliance

Classification report: I.G. 347079/3882FR
Technical file: 347957
Test standard: EN 1364-1
