UPGRADING OF LOAD-BEARING MASONRY WALLS

Name: UPGRADING OF LOAD-BEARING MASONRY WALLS
Brand: Global Building
SKU: L-016

BIM available

Application

Vertical Compartmentation · Upgrading Of Load-Bearing Masonry Walls

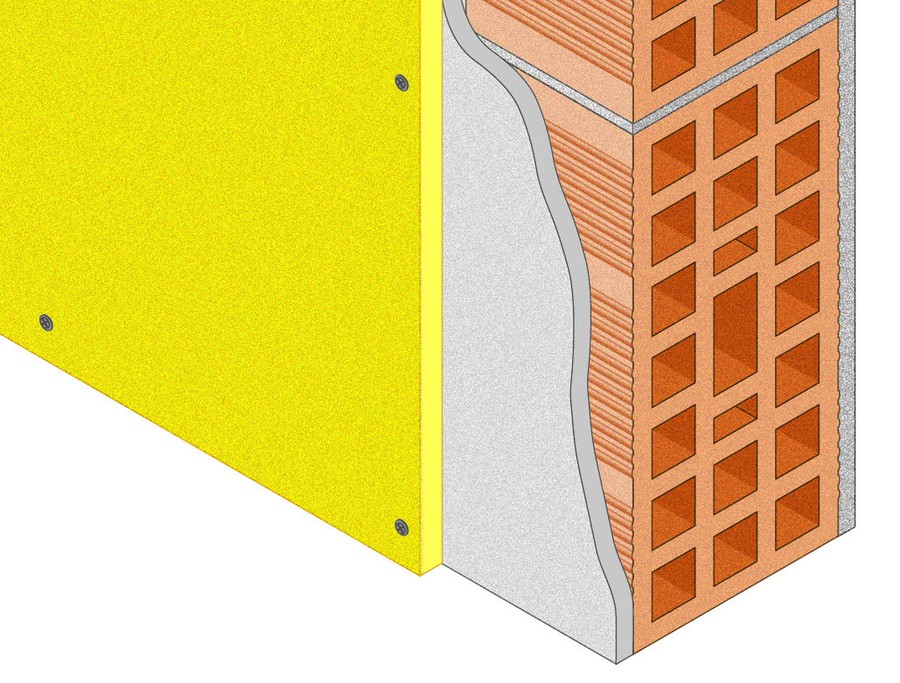

Technical drawing

Upgrading Of Load-Bearing Masonry Walls · REI 180

Technical specifications

Supporting construction: clay brick wall thickness 115 mm and plaster on both sides
Protective coating: FIREGUARD® 13 boards thickness 1x12,7 mm fixed with anchors
Fixing: metal expansion anchors diameter 9 mm at 500 mm centres
Finish: with FIREGUARD COMPOUND not required for fire protection purposes
Direct field of application: height: up to 3 metres maximum applied load: 794,6 kN, σ = 1,96 N/mm² electrical services penetration: permitted only with specific certification
Extended field of application: technical file approved by Istituto Giordano No. 304602. Maximum height 8 metres – Consult the technical department

Specification clause

Supply and installation of cladding for load-bearing brick walls, 115 mm thick, with plaster on both sides, 10 mm thick, with REI 180 fire resistance, made with FIREGUARD® 13 boards, 12,7 mm thick, maximum dimensions 1200x2000 mm, made of calcium silicates and sulphates, asbestos-free, produced by lamination with factory-controlled drying, in reaction-to-fire class A1 (non-combustible), in accordance with classification report I.G. 295052/3413FR.

The boards will be applied, laid vertically, with metal expansion anchors, 9 mm diameter, 40 mm long, at 500 mm centres. For the application procedures, refer to the specific “installation manual”.

Regulatory compliance

Classification report: I.G. 295052/3413FR
Technical file: 304602
Test standard: EN 1365-1
