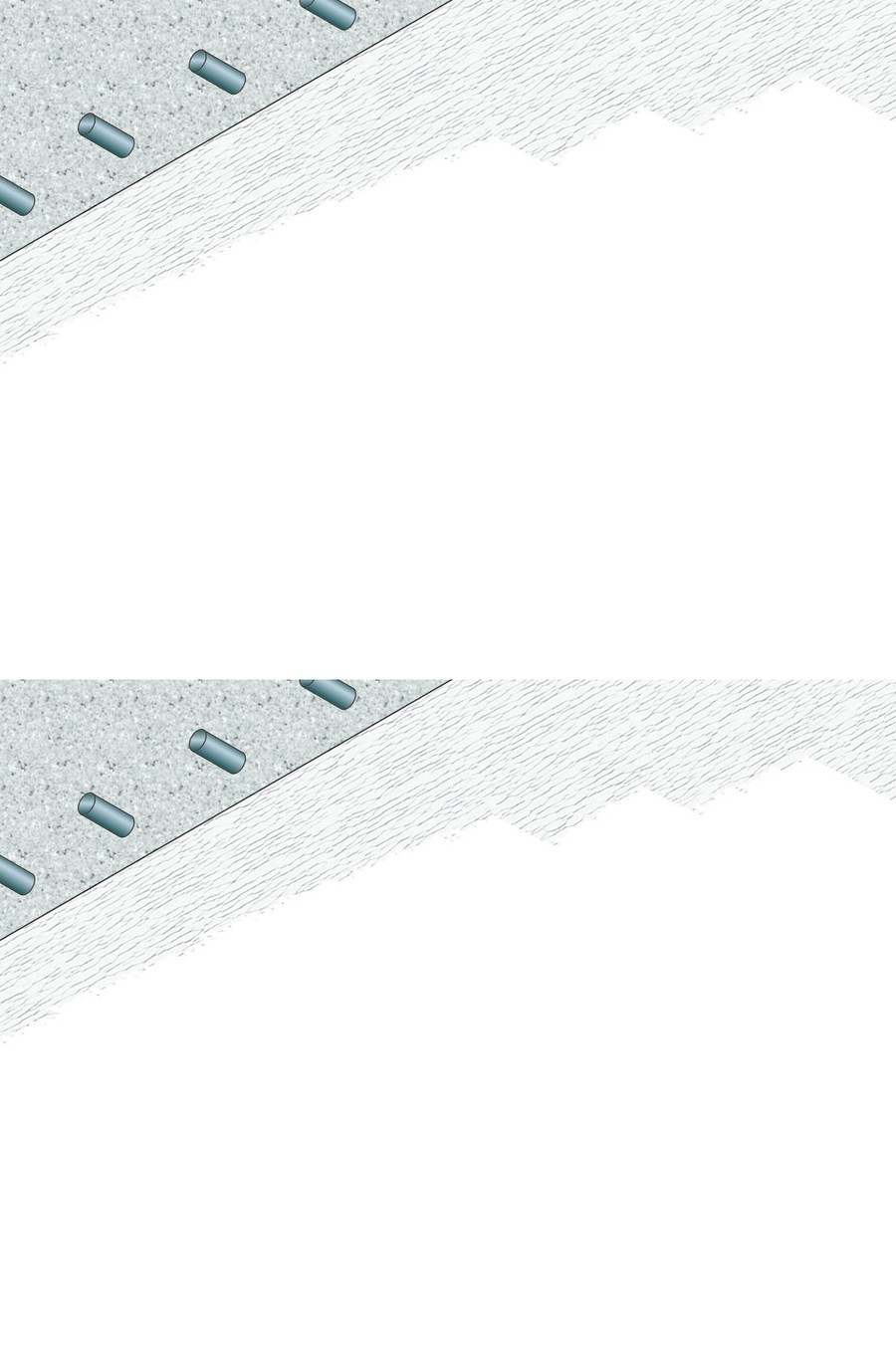

Technical drawing

Protection Of Reinforced Concrete Floor Slab · REI 120

Technical specifications

Supporting construction: reinforced concrete floor slab minimum thickness 120 mm
Protective coating: F62 PAINT intumescent paint
Application: by brush, roller or spray
Consumption: 1,2 kg/m²
Substrate preparation: not required. If necessary use F62 PRIMER

Notes and additional data

EQUIVALENT THICKNESS FOR F62 PAINT (quantity 1,2 kg/m²)

Time (min)	30'	60'	90'	120'
Equivalent thickness (mm)	21	42	41	40

Specification clause

Supply and installation of F62 PAINT water-based intumescent paint on reinforced concrete floor slabs, minimum thickness 120 mm, with fire resistance REI 120. The paint will be applied at a rate of 1,2 kg/m² in accordance with classification report I.G. 348846/3899FR.

The paint will be applied by brush, roller or spray at the rates specified in the relevant Classification Report and Technical File. For the application procedure, refer to the specific technical data sheet.

Regulatory compliance

Classification report: I.G. 348846/3899FR
Technical file: 350329
Application: S1
Test standard: EN 1365-3
