UPGRADING OF NON-LOAD-BEARING WALLS

Name: UPGRADING OF NON-LOAD-BEARING WALLS
Brand: Global Building
SKU: L-061

NewBIM available

Application

Vertical Compartmentation · Upgrading Of Non-Load-Bearing Walls

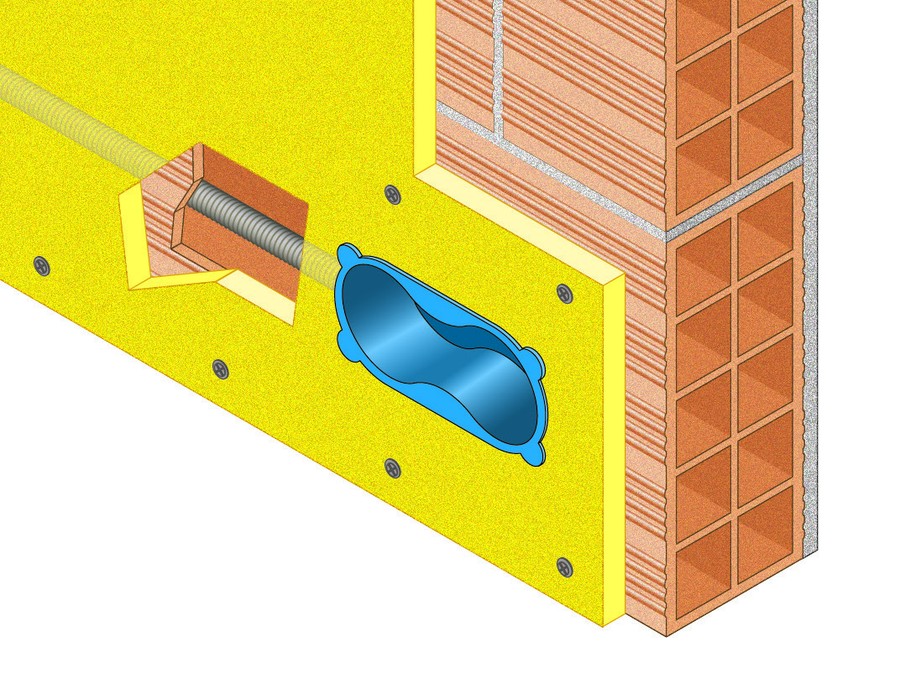

Technical drawing

Upgrading Of Non-Load-Bearing Walls · EI 120

Technical specifications

Supporting construction: hollow clay brick wall thickness 80 mm and plaster on the unexposed side
Protective coating: FIREGUARD®13 boards thickness 1x12,7 mm fixed with anchors
Fixing: metal expansion anchors Ø 9 mm at 500 mm centres
Finish: with FIREGUARD COMPOUND not required for fire protection purposes
Direct field of application: height: up to 4 metres
Extended field of application: Technical file approv. by Istituto Giordano No. 302150: maximum height 8 metres; blocks of different types (for sizing and block type consult the technical department). Technical file approv. by Istituto Giordano No. 338440: use of unprotected electrical boxes and corrugated conduits for electrical services embedded in the wall.

Specification clause

Supply and installation of cladding for hollow brick walls, 80 mm thick, with plaster on the side not exposed to fire, 10 mm thick, with EI 120 fire resistance, made with FIREGUARD® 13 boards, 12,7 mm thick, maximum dimensions 1200x2000 mm, made of calcium silicates and sulphates, asbestos-free, produced by lamination with factory-controlled drying, in reaction-to-fire class A1 (non-combustible), in accordance with classification report I.G. 282210/3303FR.

The boards will be applied, laid vertically, with metal expansion anchors, 9 mm diameter, 40 mm long, at 500 mm centres. For the application procedures, refer to the specific “installation manual”.

Regulatory compliance

Classification report: I.G. 282210/3303FR
Extended application report: N° 302150
Technical file: 302150 · 338440
Test standard: EN 1364-1
