UPGRADING OF NON-LOAD-BEARING WALLS

Name: UPGRADING OF NON-LOAD-BEARING WALLS
Brand: Global Building
SKU: L-063

BIM available

Application

Vertical Compartmentation · Upgrading Of Non-Load-Bearing Walls

Technical drawing

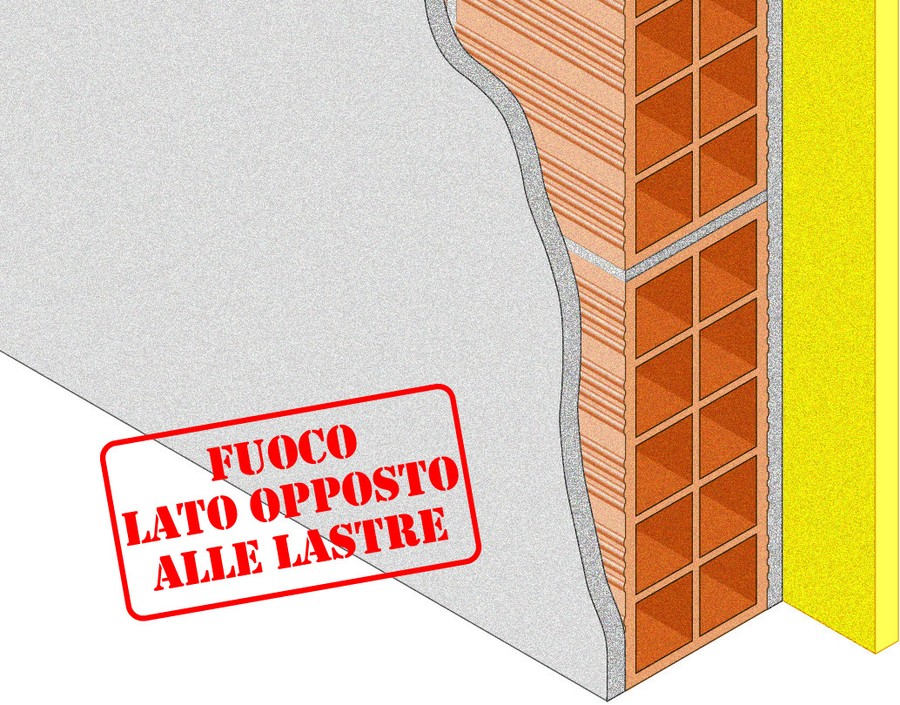

Upgrading Of Non-Load-Bearing Walls · EI 120

Technical specifications

Supporting construction: hollow clay brick wall thickness 80 mm and plaster on both sides
Protective coating: FIREGUARD®13 boards thickness 1x12,7 mm fixed with anchors
Fixing: metal expansion anchors diameter 9 mm at 500 mm centres
Finish: with FIREGUARD COMPOUND not required for fire protection purposes
Direct field of application: height: up to 4 metres · electrical services penetration: permitted only with specific certification
Extended field of application: technical file approved by Istituto Giordano No. 302149: maximum height 8 metres; blocks of different types (for sizing and block type consult the technical department)

Specification clause

Fornitura e posa in opera di rivestimento di pareti in laterizio forato spessore 80 mm con intonaco su ambi i lati, spessore 10 mm, con resistenza al fuoco EI 120 realizzato con lastre FIREGUARD® 13, spessore 12,7 mm, dimensioni massime 1200x2000 mm, costituite da silicati e solfati di calcio, esenti da amianto, prodotte per laminazione con controllo dell’essiccazione in stabilimento, in classe A1 (incombustibile) di reazione al fuoco, in conformità al rapporto di classificazione I.G. 255498/3121FR.

Le lastre saranno applicate sul lato non esposto al fuoco con posa verticale con tasselli metallici ad espansione diametro 9 mm lunghezza 40 mm ad interasse 600 mm.

Regulatory compliance

Classification report: I.G. 255498/3121FR
Extended application report: N° 302149
Technical file: 302149
Test standard: EN 1364-1
