UPGRADING OF NON-LOAD-BEARING WALLS

Name: UPGRADING OF NON-LOAD-BEARING WALLS
Brand: Global Building
SKU: L-064

BIM available

Application

Vertical Compartmentation · Upgrading Of Non-Load-Bearing Walls

Technical drawing

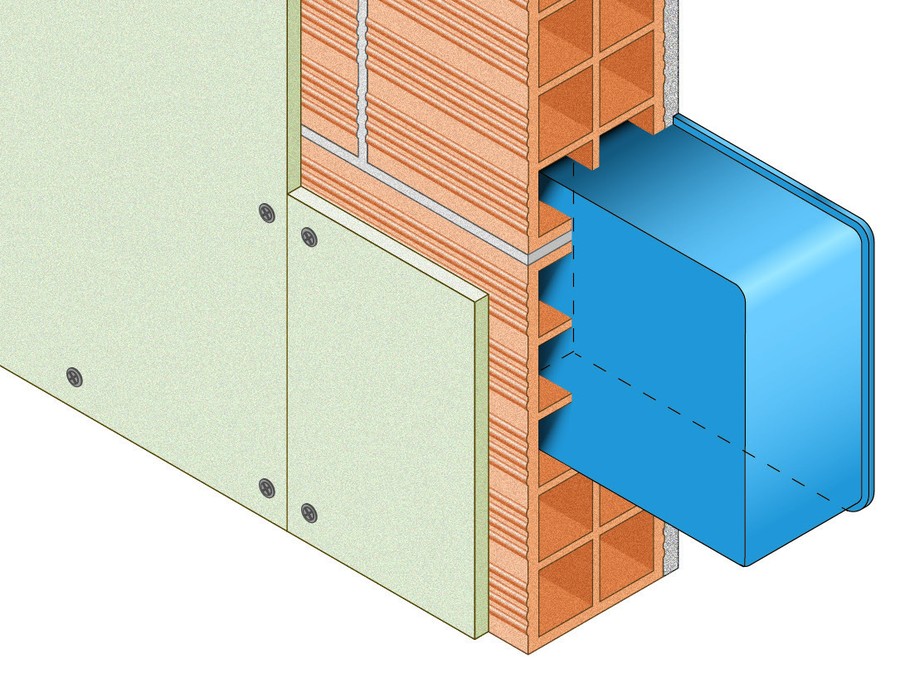

Upgrading Of Non-Load-Bearing Walls · EI 120

Technical specifications

Supporting construction: hollow clay brick wall thickness 80 mm and plaster on the unexposed side
Protective coating: FIREGUARD® S boards thickness 1x8 mm fixed with anchors
Fixing: metal expansion anchors diameter 9 mm at 550 mm centres
Finish: with FIREGUARD COMPOUND not required for fire protection purposes
Direct field of application: height: up to 4 metres · electrical services penetration: junction box 200x100 mm on the unexposed side
Extended field of application: technical file approved by Istituto Giordano No. 302151: maximum height 8 metres; blocks of different types (for sizing and block type consult the technical department)

Specification clause

Supply and installation of cladding for hollow brick walls, 80 mm thick, with plaster on the side not exposed to fire, 10 mm thick, with EI 120 fire resistance, made with FIREGUARD®S boards, 8 mm thick, maximum dimensions 1200x2400 mm, made of cement-matrix silicates, asbestos-free, in reaction-to-fire class A1 (non-combustible), in accordance with classification report I.G. 275726/3239FR.

The boards will be applied, laid vertically, with metal expansion anchors, 9 mm diameter, 40 mm long, at 550 mm centres. For the application procedures, refer to the specific “installation manual”.

Regulatory compliance

Classification report: I.G. 275726/3239FR
Extended application report: N° 302151
Technical file: 302151
Test standard: EN 1364-1
