UPGRADING OF UNPLASTERED WALLS

Name: UPGRADING OF UNPLASTERED WALLS
Brand: Global Building
SKU: L-065

BIM available

Application

Vertical Compartmentation · Upgrading Of Unplastered Walls

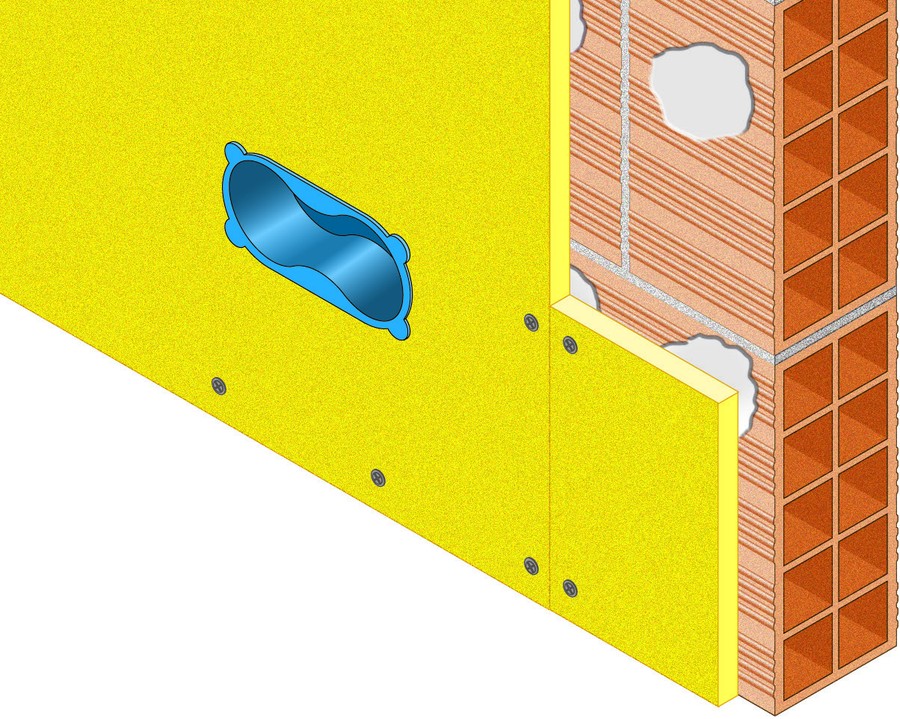

Technical drawing

Technical specifications

Supporting construction: hollow clay block thickness 80 mm
Protective coating: FIREGUARD®13 boards, thickness 1x12,7 mm fixed with anchors and glued
Fixing: metal expansion anchors diameter 4,5 mm, length 80 mm, at 600 mm centres and FIREGUARD PLOTTE adhesive
Finish: with FIREGUARD COMPOUND not required for fire protection purposes
Use of unprotected electrical boxes: yes
Direct field of application: height: up to 4 metres
Extended field of application: technical file approved by Istituto Giordano No. 316581 Maximum height: 8 metres (for sizing consult the technical department)

Specification clause

Fornitura e posa in opera di rivestimento di pareti in laterizio forato spessore 80 mm non intonacate, con resistenza al fuoco EI 120 realizzato con lastre FIREGUARD® 13, spessore 12,7 mm, costituite da silicati e solfati di calcio, esenti da amianto, prodotte per laminazione con controllo dell’essiccazione in stabilimento, in classe A1 (incombustibile) di reazione al fuoco, in conformità al rapporto di classificazione I.G. 307794/3560FR.

Le lastre saranno applicate con posa verticale con tasselli metallici ad espansione diametro 4,5 mm lunghezza 80 mm ad interasse 600 mm previa interposizione di tamponi di colla FIREGUARD PLOTTE.

Regulatory compliance

Classification report: I.G. 307794/3560FR
Extended application report: N° 316581
Technical file: 316581
Test standard: EN 1364-1
