UPGRADING OF NON-LOAD-BEARING WALLS

Name: UPGRADING OF NON-LOAD-BEARING WALLS
Brand: Global Building
SKU: L-066

NewBIM available

Application

Vertical Compartmentation · Upgrading Of Non-Load-Bearing Walls

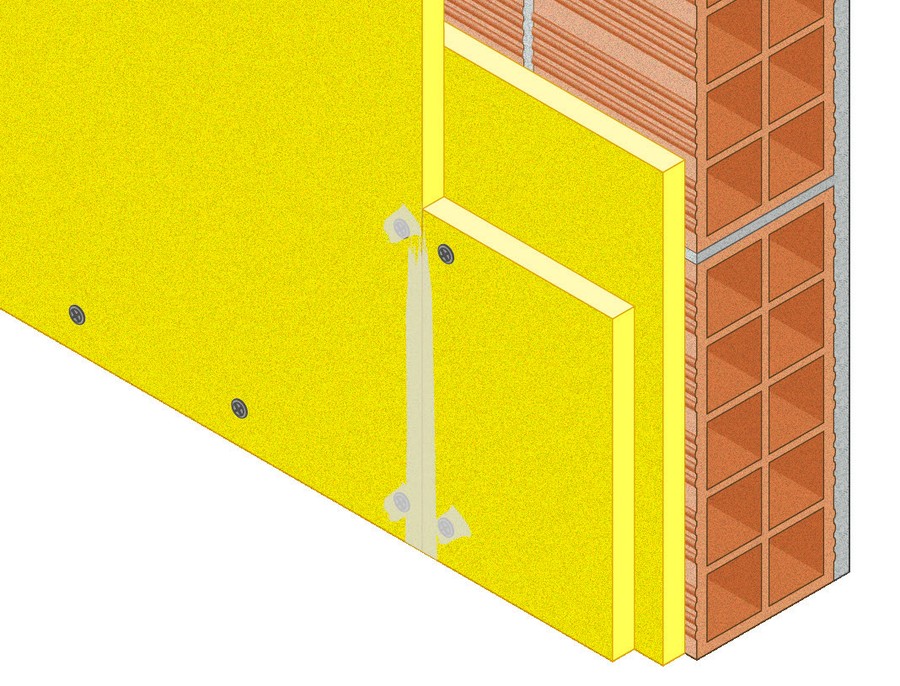

Technical drawing

Upgrading Of Non-Load-Bearing Walls · EI 180

Technical specifications

Supporting construction: hollow clay brick wall thickness 80 mm and plaster on the unexposed side.
Protective coating: FIREGUARD® 13 boards thickness 2x12,7 mm fixed with anchors
Fixing: metal expansion anchors diameter 9 mm at 500 mm centres
Finish: filling of joints and anchor heads with FIREGUARD COMPOUND
Direct field of applic.: height: up to 4 metres electrical services penetration: permitted only with specific certification
Extended field of application: technical file approved by Istituto Giordano No. 302148. Maximum height: 8 metres Blocks of different types (for sizing and block type consult the technical department)

Specification clause

Supply and installation of cladding for hollow brick walls, 80 mm thick, with plaster on the side not exposed to fire, 10 mm thick, with EI 180 fire resistance, made with FIREGUARD®13 boards, 12,7 mm thick, made of calcium silicates and sulphates, asbestos-free, produced by lamination with factory-controlled drying, in reaction-to-fire class A1 (non-combustible), in accordance with classification report I.G. 255766/3122FR and

Technical File 399948. The boards will be applied, laid vertically, with metal expansion anchors, 9 mm diameter, 45 mm long for the inner layer and 65 mm long for the outer layer, at 500 mm centres. The finishing of the joints and anchor heads will be carried out with FIREGUARD COMPOUND filler. For the application procedures, refer to the specific “installation manual”.

Regulatory compliance

Classification report: I.G. 255766/3122FR
Extended application report: N° 302148
Technical file: 399948
Test standard: EN 1364-1
