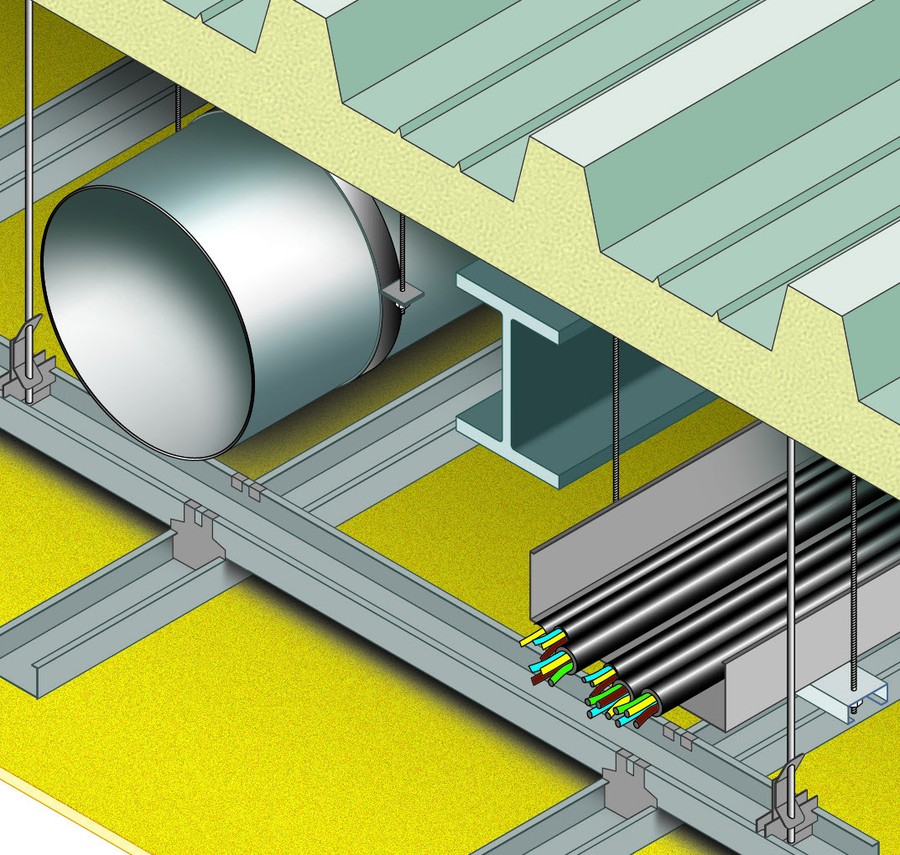

PROTECTION OF TRAPEZOIDAL STEEL DECK ROOF SLAB AND STEEL BEAMS WITH SUSP. CEILING AT SPLIT LEVELS WITH SERVICES AND PENETR.

Supply and installation of a suspended ceiling with services in the plenum: ventilation duct up to 300 mm and cable tray with electrical cables weighing up to 10 kg/m, on a roof slab consisting of trapezoidal steel deck and steel beams, with fire resistance R 120, placed 200 mm below the underside of the beams, made with FIREGUARD® 13 boards, 12,7 mm thick, max. dimensions 1200x2000 mm, made of calcium silicates and sulphates, asbestos-free, produced by lamination with factory-controlled drying, in class A1 (non-combustible) reaction

The boards will be screwed with phosphated self-drilling screws, 3,5 mm dia., 25 mm long, placed at 250 mm centres, to a metal structure composed of a secondary framing consisting of galvanised steel “C” profiles, dimensions 50x27x0,6 mm, placed at 500 mm centres, and a main metal framing consisting of the same “C” profiles placed at 900 mm centres, fixed to the secondary framing by means of purpose-made orthogonal hooks and suspended with hangers at 900 mm centres. The joints and screw heads will be finished with FIREGUARD COMPOUND filler.
