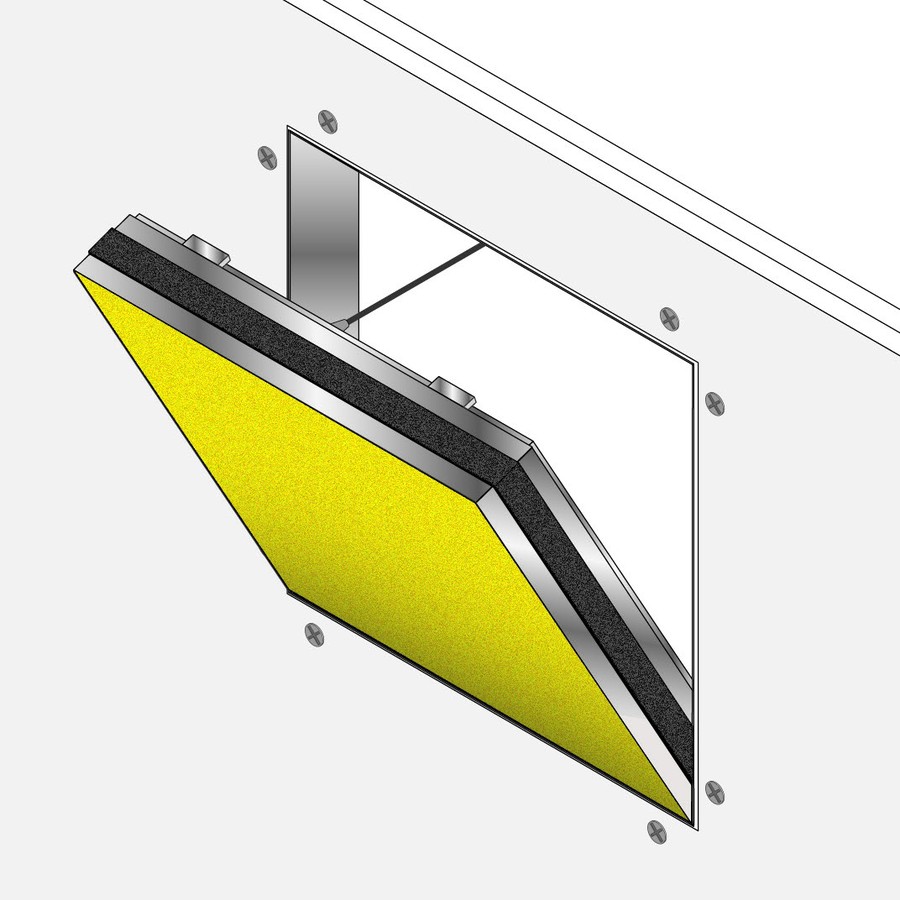

Technical drawing

Inspection Hatch For Shaft Walls Ei 60 ·Gb-Ei 60 Setto· · EI 60

Technical specifications

Supporting construction: Plasterboard partition Calcium silicate partition
Product to apply: ACCESS HATCH “GB-EI 60 SETTO” Available sizes: 300x300 mm, 400x400 mm, 500x500 mm, 600x600 mm,
Fixing: phosphate-coated self-drilling screws
Finish: filling of the frame and hatch with FIREGUARD COMPOUND filler
Extended field of application: plasterboard partitions of various thicknesses approved with

Notes and additional data

NOTE: certification with fire on both sides.

Specification clause

Supply and installation of ACCESS HATCH “GB-EI 60 SETTO”, with fire resistance EI 60 certified on calcium silicate board partitions and also suitable for installation on plasterboard partitions. The hatch consists of a fixed perimeter frame made of aluminium profiles firmly welded by a special process, and a removable door made of a perimeter frame of

aluminium angle profiles with an infill of FIREGUARD® boards, total thickness 50,8 mm. An intumescent gasket is placed along the perimeter edge of the door, facing the perimeter frame. Installation shall be carried out in accordance with classification report I.G. 331596/3771FR.

Regulatory compliance

Classification report: I.G. 331596/3771FR
Technical file: I.G. n° 349617/2018
Test standard: EN 1364-1
