HORIZONTAL SEPARATION BAND - SIMPLE FAÇADES

Name: HORIZONTAL SEPARATION BAND - SIMPLE FAÇADES
Brand: Global Building
SKU: L-207

BIM available

Application

Façade Protection · Horizontal Separation Band - Simple Façades

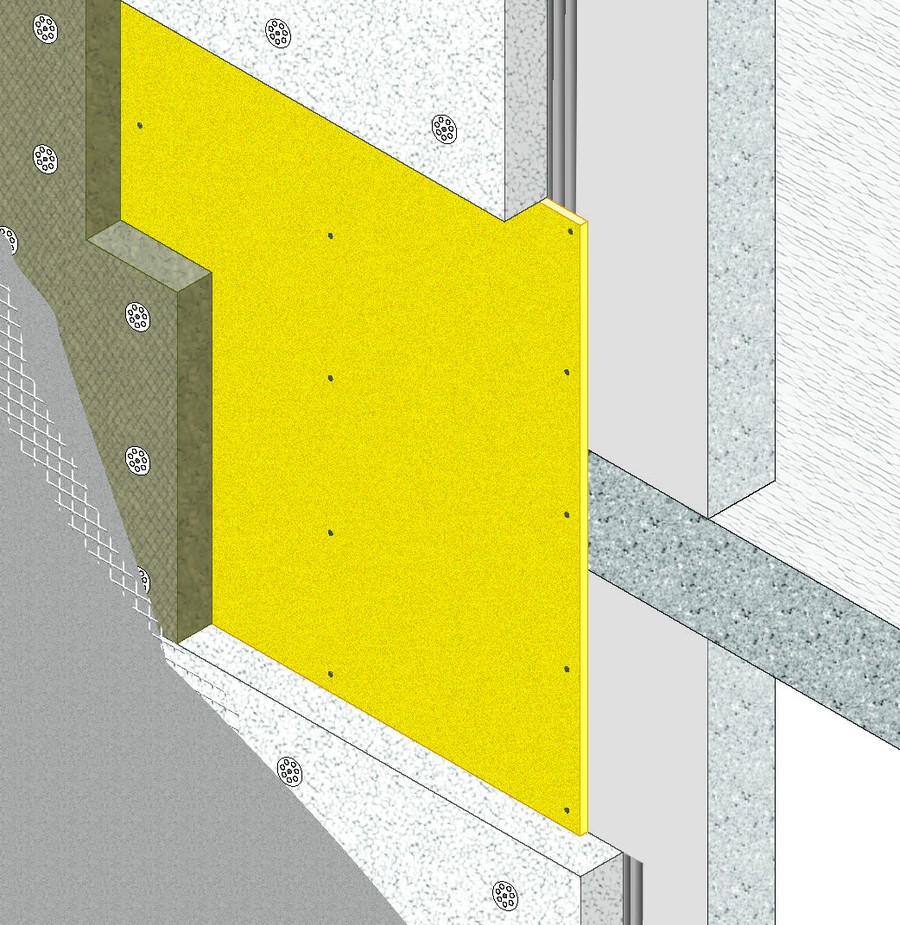

Technical drawing

Horizontal Separation Band - Simple Façades · EI 30

Technical specifications

Supporting construction: simple façade
Height: ≥ 1 metre
Protective coating: - FIREGUARD® 18 boards (EI 30) thickness 1x18 mm anchor-fixed - FIREGUARD® 13 boards (EI 60) thickness 2x12,7 mm anchor-fixed
Fixing: metal expansion anchors at 600 mm centres
Finish: reinforced skim coat of the surface with UNIJOINT filler and UNIROLL reinforcing mesh, and surface finish with thick-layer acrylic finishing plaster not necessary for fire protection purposes SOLUTION COMPLIANT WITH RTV 13

Notes and additional data

SOLUTION COMPLIANT WITH RTV 13.

Specification clause

Supply and installation of a horizontal separation band for a simple façade (18 mm thick with fire resistance EI 30 / 2x12,7 mm thick with fire resistance EI 60), made with FIREGUARD® boards made of calcium silicates and sulphates, asbestos-free, produced by lamination with factory-controlled drying, in class A1 (non-combustible) reaction to fire, in accordance with classification reports I.G. 403517/4302FR (EI 30) and I.G. 260329/3145FR (EI 60).

The boards will be fixed with metal expansion anchors at 600x250 mm centres. Finishing carried out with a reinforced skim coat of the surface using UNIJOINT filler and UNIROLL reinforcing mesh, and surface finish with thick-layer acrylic finishing render.

Regulatory compliance

Rapporto di classificazione (EI 30): I.G. 403517/4302FR
Rapporto di classificazione (EI 60): I.G. 260329/3145FR
Test standard: EN 1364-1
