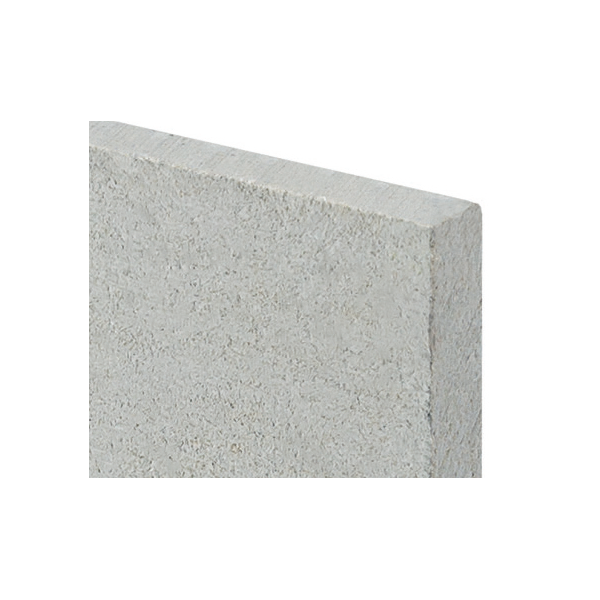

Fireguard S

Description

the FIREGUARD® S boards are made of cement-matrix silicates, asbestos-free, produced in autoclave. They guarantee high thermal insulation and integrity in the event of fire, making them suitable in all cases where passive fire protection is required. They are non-combustible (reaction to fire class A1). FIREGUARD® S boards guarantee mechanical strength and high resistance to humidity.

Technical characteristics

CE marking

EN 12467

Thickness

8 mm

Width

1200 mm

Length

2400 mm

Weight

9,8 kg/m2 ± 10%

Modulus of elasticity

>4000 MPa

Compressive strength

>9,1 MPa

Flexural strength

>5,5 MPa

Nail pull-out resistance

>850 N

Linear tolerances

± 3 mm

Thickness tolerances

± 0,8 mm

Squareness

Square edge

Linear thermal expansion

0,003 mm/C°/m

Thermal conductivity

0,15 W/mC°

Reaction to fire

A1 (non-combustible)

Application and installation

the FIREGUARD® S boards are fixed by means of mechanical fixings (anchors). The instructions contained in the specific certifications must be observed, in relation to the types adopted. In cladding systems, FIREGUARD® S boards are usually certified without joint filling. If, for reasons of aesthetic finish, joint filling is required, the fixings must be positioned at 250 mm centres, along the edges of the board and along its centre line. FIREGUARD COMPOUND gypsum-based filler must be used, applied with mesh tape or glass fibre tape.
