HORIZONTAL SMOKE EXTRACTION DUCTS “FIREGUARD® DUCT” boards

Name: HORIZONTAL SMOKE EXTRACTION DUCTS “FIREGUARD® DUCT” boards
Brand: Global Building
SKU: L-160

BIM available

Application

Smoke Extraction Ducts · Horizontal Smoke Extraction Ducts

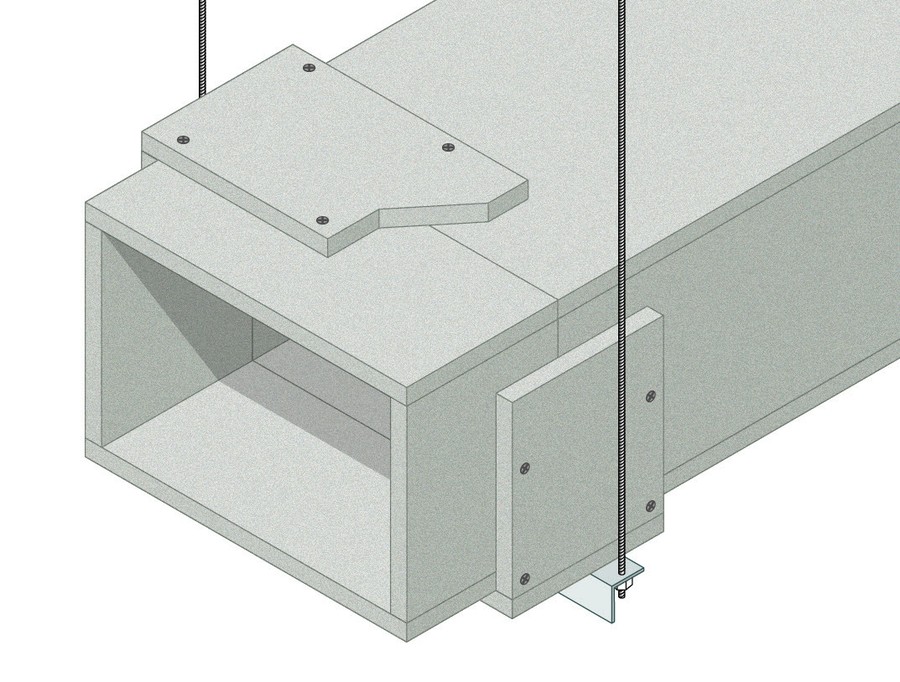

Technical drawing

Horizontal Smoke Extraction Ducts · EI 120

Technical specifications

Fire exposure: internal/external side
Supporting construction: “L” crossbars 50x50x5 mm and threaded rods Ø 16 mm
Protective coating: FIREGUARD DUCT boards thickness 1x30 mm
Direct field of application: 4-sided duct Max dimensions: 416 mm (width), 1000 mm (height) Maximum stresses on support devices: Elastic stress on all vertically oriented components for t ≤ 60 min : 9 N/mm², for 60 min < t ≤ 120 min : 6 N/mm² Maximum distance between supports: 1150 mm Operating pressure: -1500/+500 Pa

Specification clause

Fornitura e posa in opera di condotte di evacuazione fumi verticali con resistenza al fuoco EI 120 (ho i↔o) S 1500 multi realizzate con lastre FIREGUARD DUCT spessore 30 mm, dimensioni max 1200x2300 mm, in fibrocemento, esenti da amianto, in classe A1 (incombustibile) di reazione al fuoco in conformità al rapporto di classificazione Applus 13/7092-2931 part. 2. Con marcatura CE EN 12101-7.

Le lastre saranno incollate con colla FIREGUARD GLUE e fissate con viti autoperforanti fosfatate Ø 5 mm lunghezza 60 mm a passo 200 mm. I giunti delle lastre saranno rivestiti con striscie di FIREGUARD DUCT spessore 30 mm e larghezza 300 mm, fissate con viti autoperforanti fosfatate diametro 5 mm lunghezza 60 mm a passo 250 mm e incollate con colla FIREGUARD GLUE.

Regulatory compliance

Classification report: Applus 13/7092-2931 part. 2
Test standard: EN 1366-8 - CE EN 12101-7
