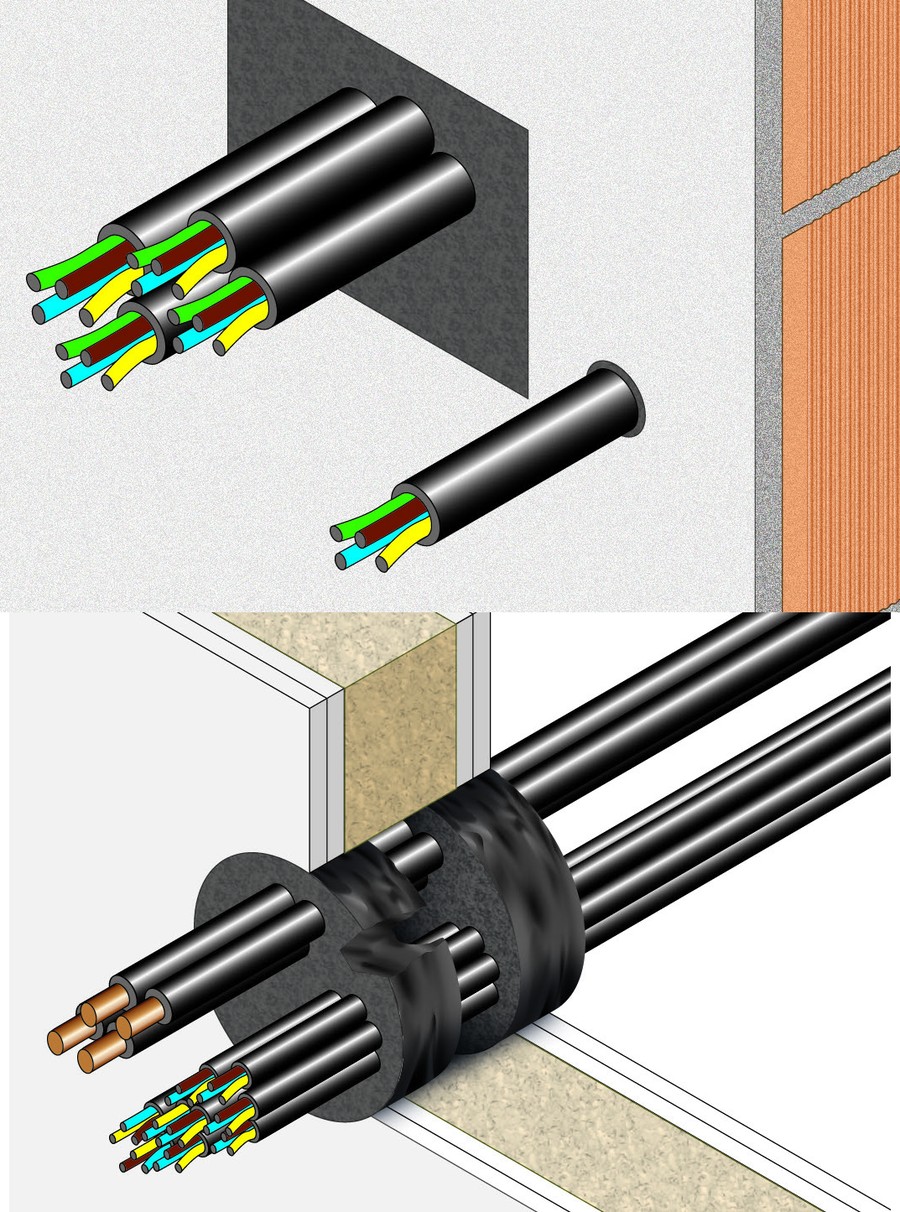

Technical drawing

Penetr. Of Single Electrical Cables Or Bundles · EI 120

Technical specifications

Supporting construction: masonry wall thickness ≥150 mm plasterboard wall thickness ≥150 mm
Product to apply: FIRESTOP SEALANT “GB-MT GRAPHITE”
Fixing: by means of a suitable gun
Finish: painting is possible
Direct field of application: – For openings up to 100 x 100 mm – For openings up to Ø 113 mm – For cables up to Ø 21 mm – Distance between the cables and the penetration edge: 0 mm
Use: internal use in environments with humidity above 85%
Application

Notes and additional data

PRESSURE TIGHTNESS: up to a differential pressure of 600 Pa: NO LEAKAGE

Specification clause

Supply and installation of SEALANT “GB-MT GRAPHITE” with fire resistance EI 120 and pressure tightness of 600 Pa with no leakage, suitable for pressurised smoke-proof lobbies, certified on masonry or plasterboard walls, for sealing penetrations of single electrical cables and cable bundles, in accordance with classification report ETA 13/0093.

The sealant will be applied by means of a dedicated gun on both sides of the wall to a depth of at least 50 mm. For application procedures, refer to the dedicated “installation manual”.

Regulatory compliance

Classification report: ETA 13/0093
Test standard: EN 1366-3
