FIRE-RATED AIR TRANSFER GRILLE — Global Building
Home
/
Solutions
/
A-052
GLOBAL BUILDING FIRE · PENETRATIONS
FIRE-RATED AIR TRANSFER GRILLE
GRILLE “GB-GA 45”
Application
Wall Penetrations · Fire-Rated Ventilation Grille

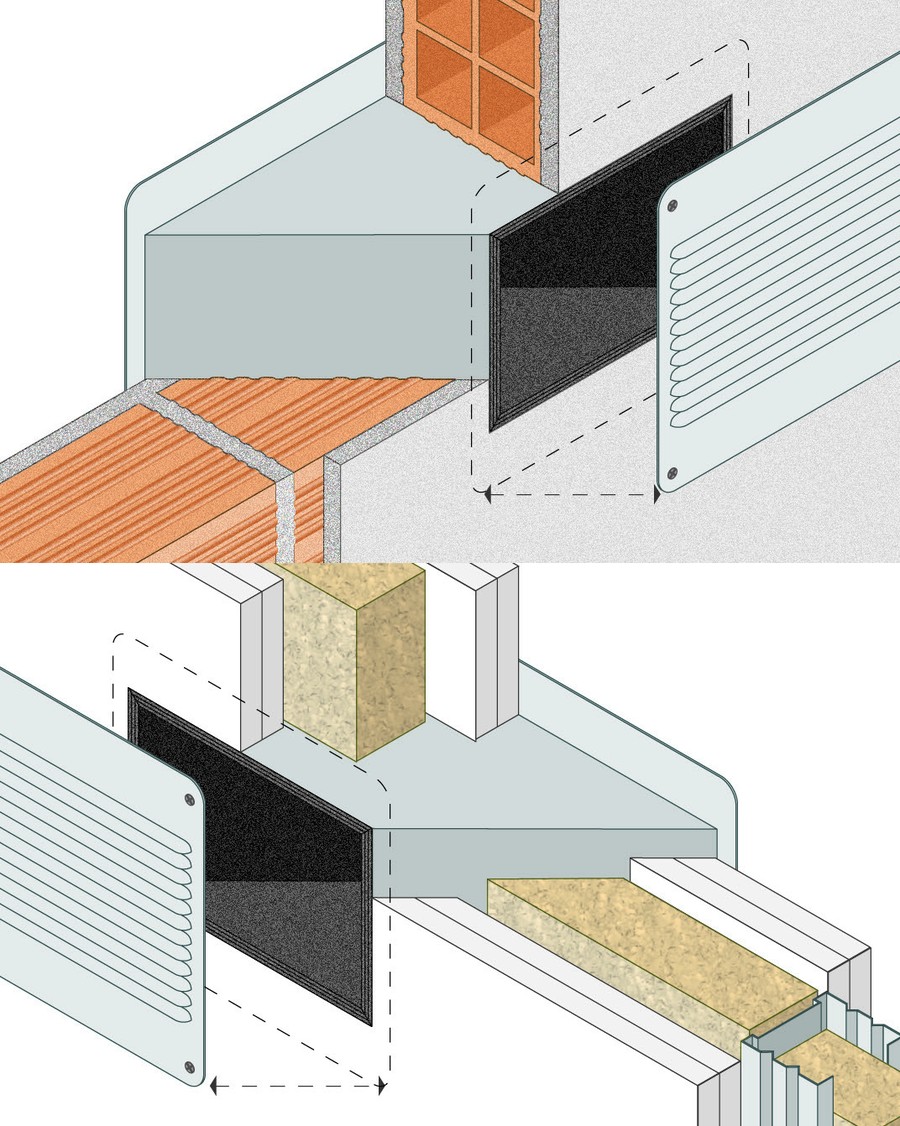

Technical drawing
Technical specifications
Supporting construction
masonry or plasterboard wall thickness ≥ 100 mm.
Product to apply
FIRE GRILLE “GB-GA 45” Available sizes: 100 x 100 mm 100 x 150 mm
Finish
apply steel sheet cover plates
Notes and additional data
100 mm
Regulatory compliance
Classification report
I.G. 332016/3776FR
Test standard
EN 1366-3
