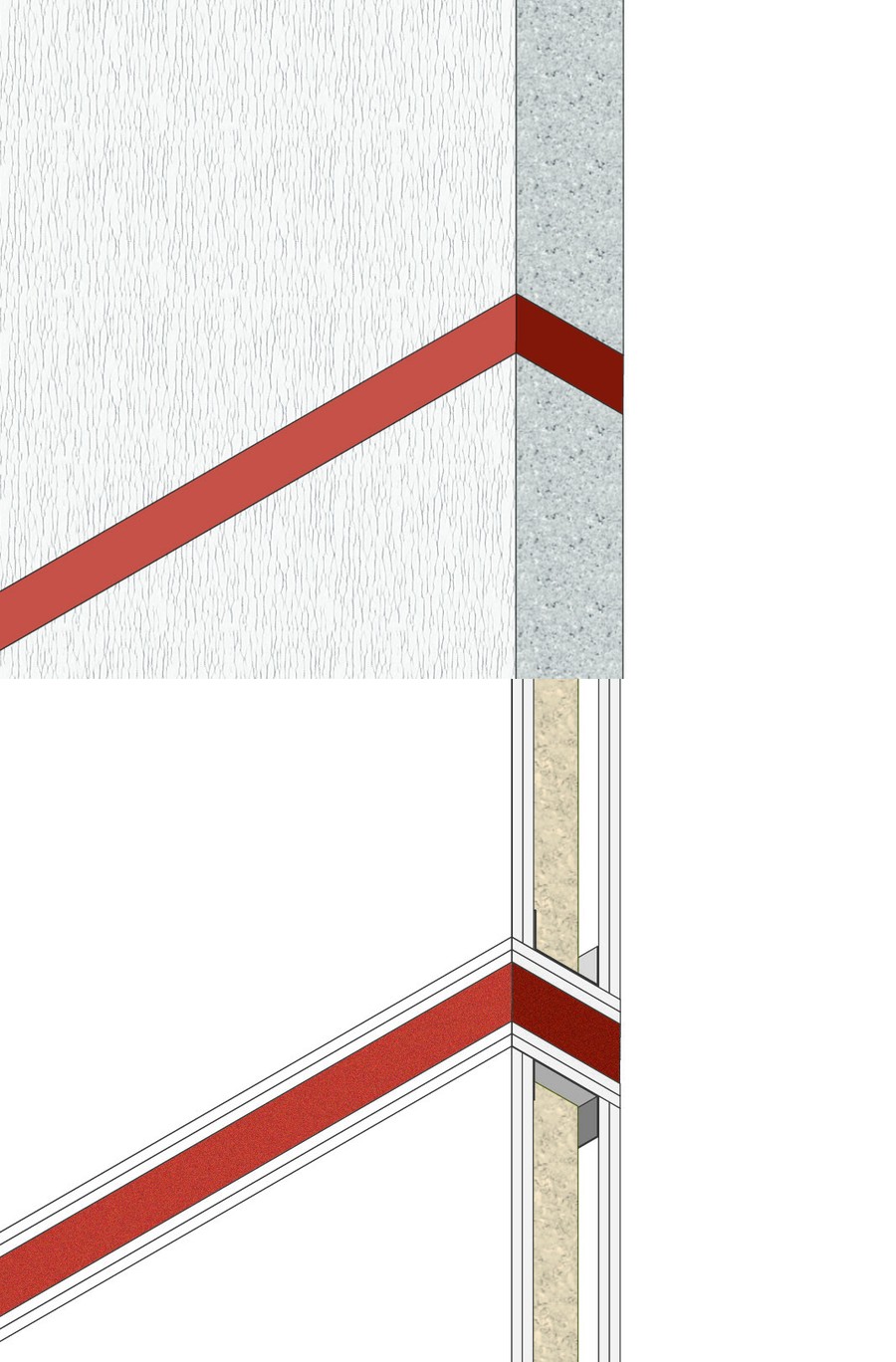

Technical drawing

Horizontal Wall Expansion Joints · EI 120

Technical specifications

Joint type: wall/wall
Movement capability: up to 7,5%
Product to apply: polyurethane foam “GB-F” thickness ≥ 125 mm
Width: ≤ 50 mm
Finish: painting is possible

Notes and additional data

Joint width	Joint orientation	“GB-F” thickness	Seal (infill)	Supporting construction	Classification	Certificate
≤ 50 mm	Horizontal on vertical construction	≥ 125 mm	—	Masonry or concrete walls with thickness ≥ 125 mm	EI 120 T-X-F	I.G. 374655/4064FR

Specification clause

Supply and installation of protection for horizontal gaps and expansion joints with a maximum width of 50 mm, with EI 120 T-X-F fire resistance, made of polyurethane foam “GB-F”, density 25 kg/m3, minimum thickness 125 mm, in accordance with classification report I.G. 374655/4064FR and technical file no. 379614. The foam is certified for applications on both masonry and plasterboard. For installation procedures, refer to the specific “installation manual”.

Regulatory compliance

Classification report: I.G. 374655/4064FR
Technical file: 438232
Test standard: EN 1366-4
