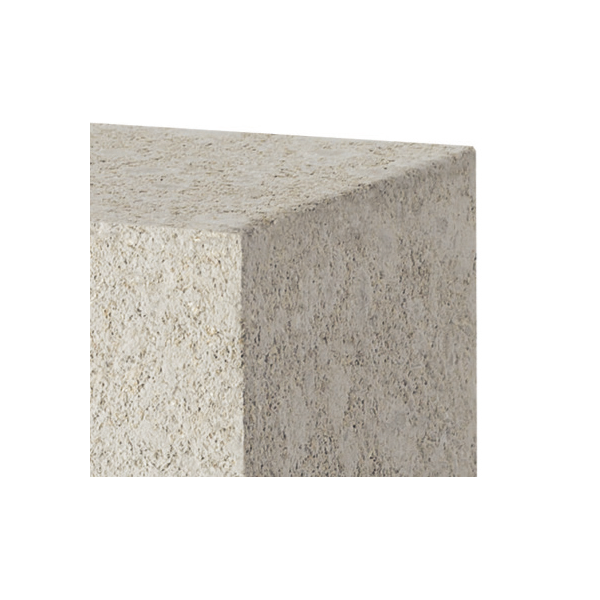

Fireguard 45

Description

the FIREGUARD® 45 boards are high-density self-supporting panels, totally asbestos-free, composed of silicates, selected fibres and inert additives. They undergo a treatment that makes the finished product totally stable in the event of fire, with high mechanical strength and resistance to atmospheric humidity. They are non-combustible (reaction to fire class A1). Supplied as rigid self-supporting panels with high mechanical stability, abrasion resistance and good performance under heat and temperature.

Technical characteristics

CE marking

EN 12101-7

Thickness

45 mm

Width

1200 mm

Length

2000 mm

Weight

700 kg/m3 ± 10%

Modulus of elasticity

>1200 MPa

Compressive strength

>2,4 MPa

Flexural strength

>3,2 MPa

Nail pull-out resistance

>850 N

Ball impact resistance

No damage

Linear tolerances

± 3 mm

Thickness tolerances

± 0,5 mm

Squareness

Square edge

Depth of the longitudinal joint

/

Linear thermal expansion

0,013 mm/C°/m

Thermal conductivity

0,135 W/mC°

Freeze-thaw cycle resistance

/

Resistance to bacteria

0 (no growth)

Resistance to fungi

0 (no growth)

Reaction to fire

A1 (non-combustible)

PH - Degree of alkalinity

11

Application and installation

the FIREGUARD® 45 boards, through their high mechanical strength, allow use in the most severe conditions. They are easily workable by machine or by hand. Modern power tools such as circular saws are certainly advisable where speed and precision in working the product are required. The boards are glued on the edges with FIREGUARD GLUE and screwed together.
